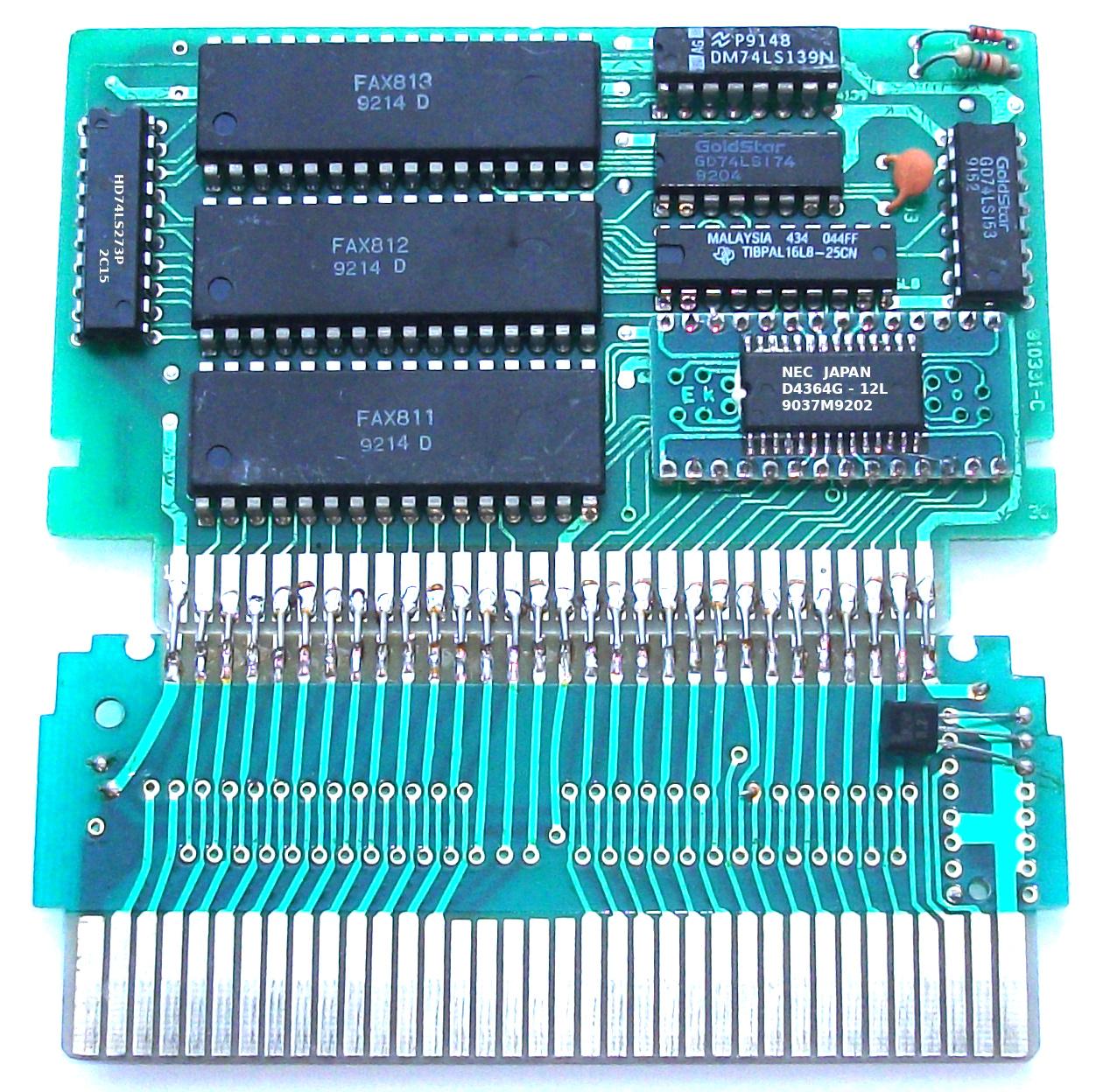

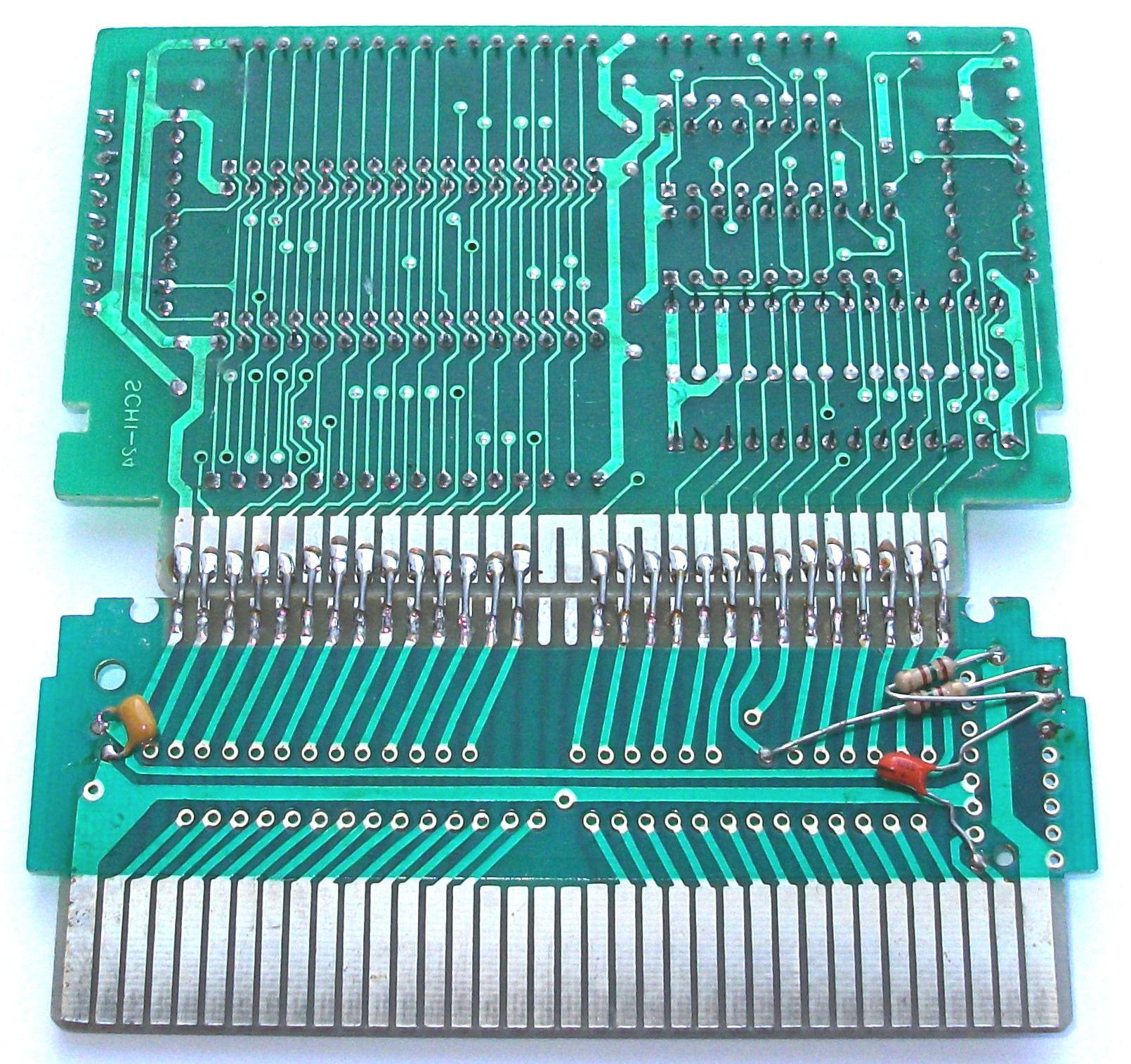

1992 劃面選關 1050-in-1

-- create the module's table
local dump32_310331C = {}

-- import required modules
local dict = require "scripts.app.dict"
local nes = require "scripts.app.nes"
local dump = require "scripts.app.dump"
local flash = require "scripts.app.flash"
local time = require "scripts.app.time"
local files = require "scripts.app.files"
local swim = require "scripts.app.swim"
local buffers = require "scripts.app.buffers"

-- local functions
local function create_header( file, prgKB, chrKB )
    -- Mapper : 354 ; Mirroring : 0 (Horizontal)

    nes.write_header( file, prgKB, 0, 354, 0)
end

--dump the PRG ROM
local function dump_prgrom( file, rom_size_KB, debug )

    local KB_per_read = 32
    local num_reads = rom_size_KB / KB_per_read
    local read_count = 0
    local addr_base = 0x08  -- $8000

    while ( read_count < num_reads ) do

        if debug then print( "dump PRG part ", read_count, " of ", num_reads) end

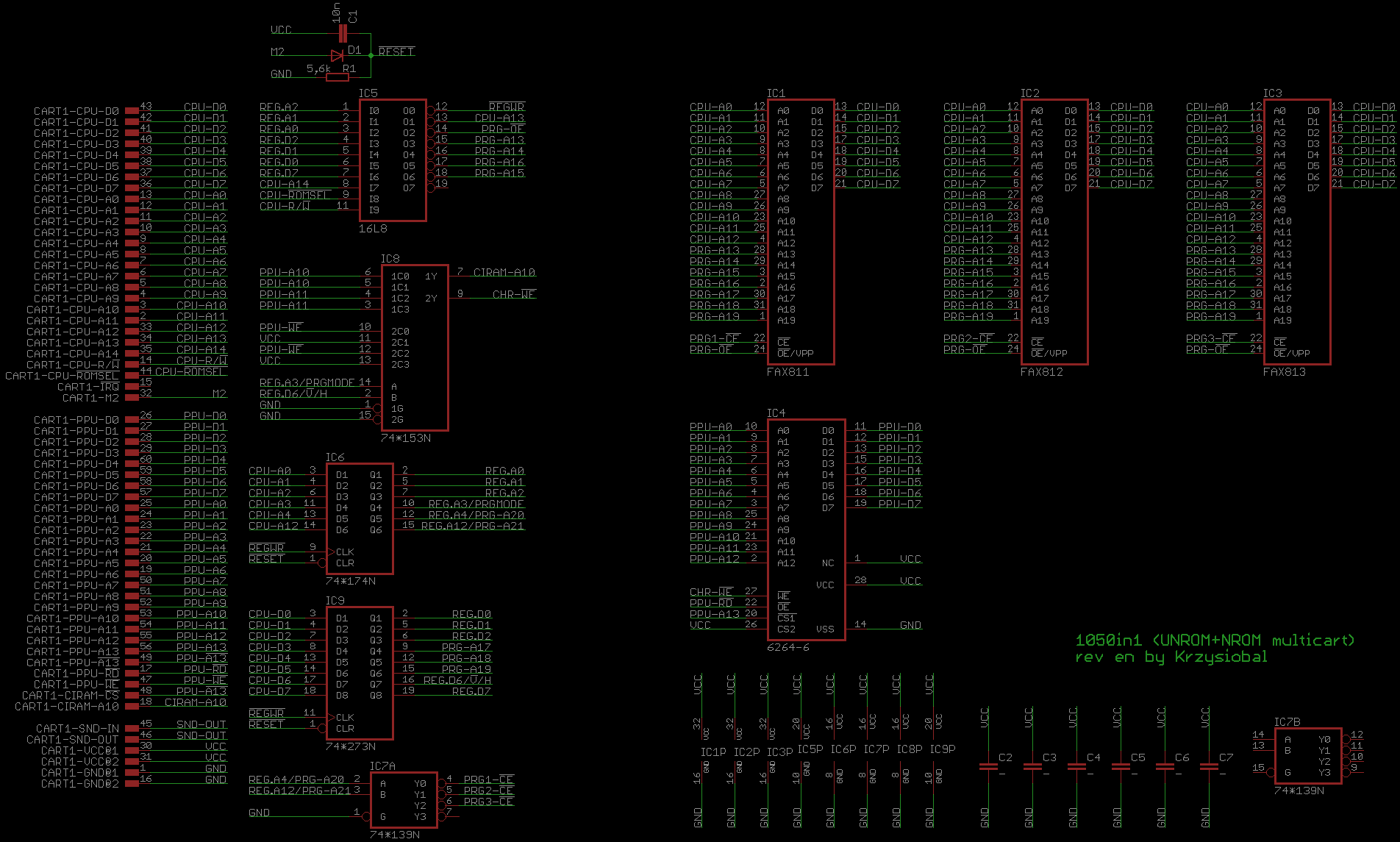

        -- hardware: A0-A2, D0-D2, D7 all go to PAL, which then generates A13-A16

        -- A3 controls whether CHR RAM is writeable
        -- D6 specifies H/V mirroring control
        -- A4,A12 are A20,A21
        -- D3-D5 are A17-A19
        local datapart = (read_count & 0x1F) << 1;
        local addrpart = 0xE000 | ((read_count >> 1) & 0x10) | ((read_count << 6) & 0x1000);

        -- pause of 1 second to take care about the chips
        local time=os.clock()+1
        while time>os.clock()
            do
            end

        --select desired bank(s) to dump
        dict.nes("NES_CPU_WR", addrpart, datapart)  --32KB @ CPU $8000

        dump.dumptofile( file, KB_per_read, addr_base, "NESCPU_4KB", false )

        read_count = read_count + 1
    end
end

--Cart should be in reset state upon calling this function
--this function processes all user requests for this specific board/mapper
--local function process( test, read, erase, program, verify, dumpfile, flashfile, verifyfile)
local function process(process_opts, console_opts)
    local test = process_opts["test"]
    local read = process_opts["read"]
    local erase = process_opts["erase"]
    local program = process_opts["program"]
    local verify = process_opts["verify"]
    local dumpfile = process_opts["dump_filename"]
    local flashfile = process_opts["flash_filename"]
    local verifyfile = process_opts["verify_filename"]

    local rv = nil
    local file
    local prg_size = console_opts["prg_rom_size_kb"]
    local chr_size = console_opts["chr_rom_size_kb"]
    local wram_size = console_opts["wram_size_kb"]

--initialize device i/o for NES
    dict.io("IO_RESET")
    dict.io("NES_INIT")

print("\nRunning dump310331C-32-NRS.lua")

--dump the cart to dumpfile
    if read then
        print("\nDumping PRG-ROM...")
        file = assert(io.open(dumpfile, "wb"))

        --create header: pass open & empty file & rom sizes
        create_header(file, prg_size, chr_size)

        --TODO find bank table to avoid bus conflicts!
        --dump cart into file
        time.start()
        dump_prgrom(file, prg_size, false)
        time.report(prg_size)

        --close file
        assert(file:close())
        print("DONE Dumping PRG-ROM")
    end

    dict.io("IO_RESET")
end

-- functions other modules are able to call
dump32_310331C.process = process

-- return the module's table
return dump32_310331C
